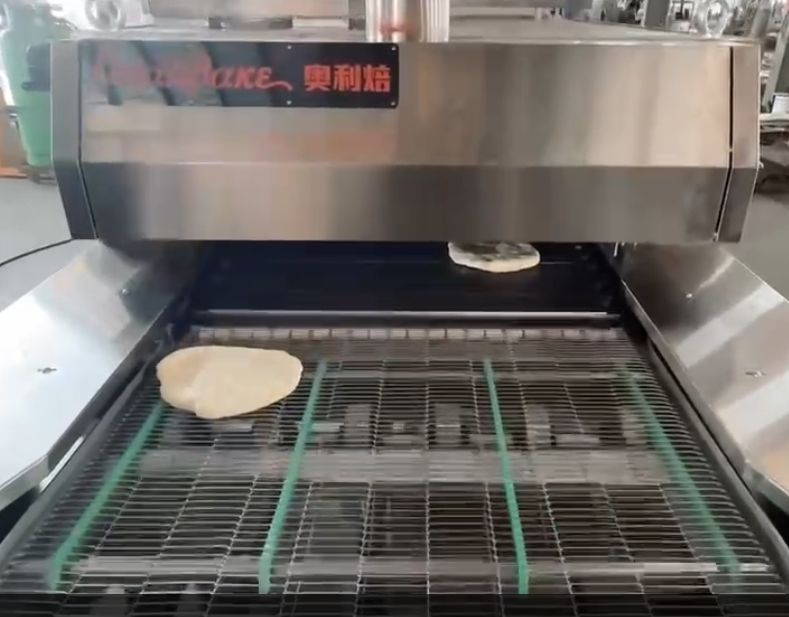

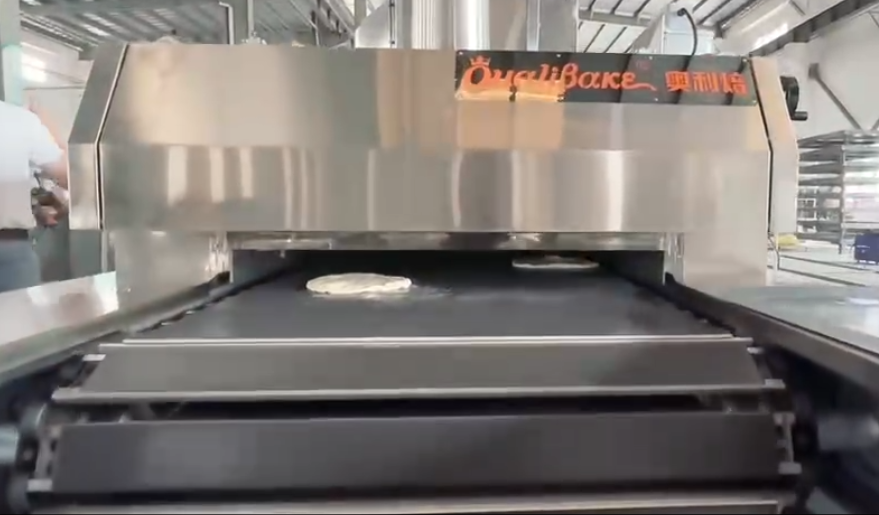

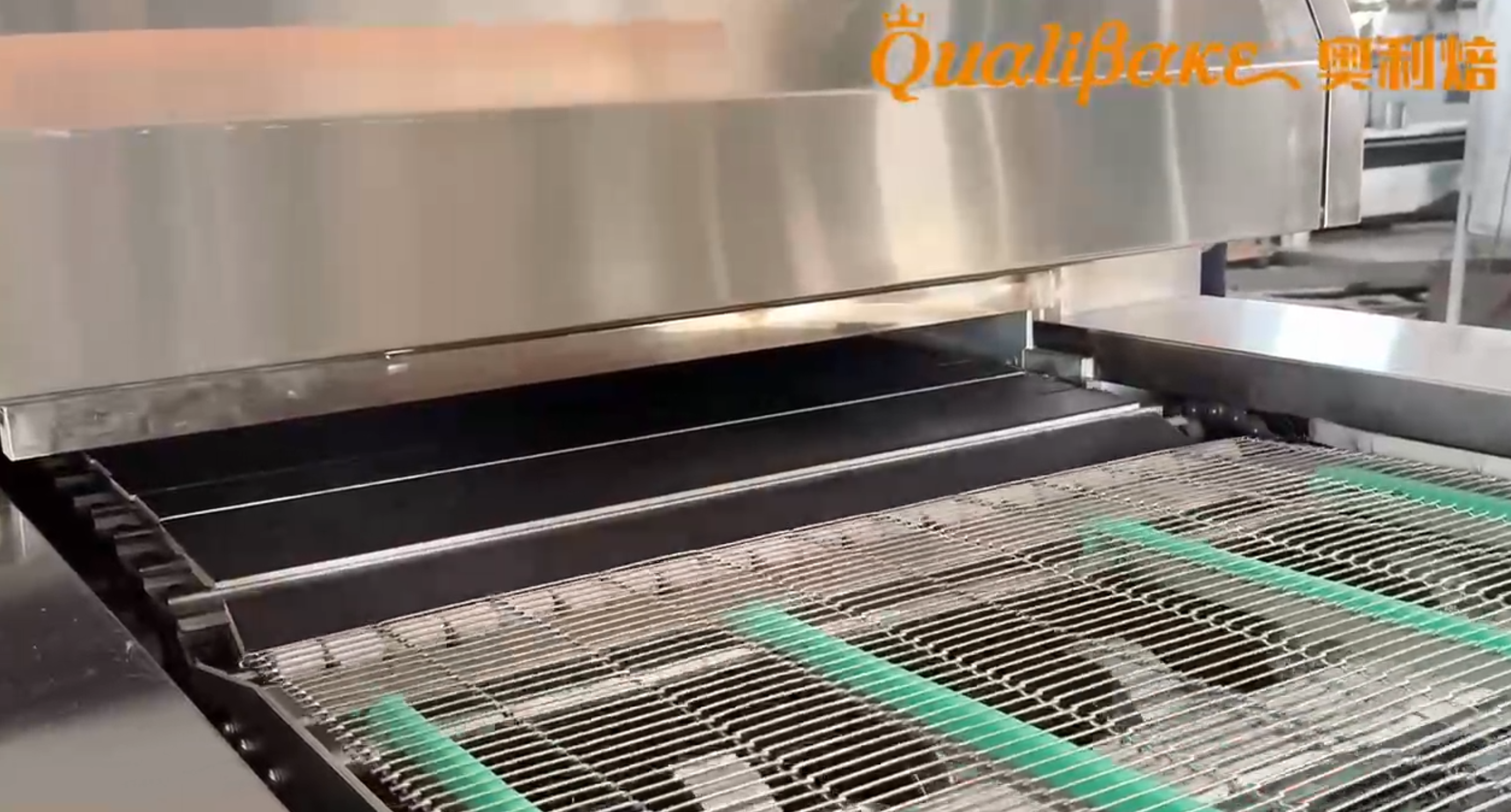

Introduction of the QUALIBAKE stone tunnel oven
Generally according to the different energy, there are electric slate tunnel oven, liquefied gas slate tunnel oven or natural gas slate tunnel oven
Baking temperature range: normal temperature ~450℃
Specification: the tunnel oven can be customized the length and width according to the production requirements of users, generally the shortest 6m, the width is from 0.8m to 2m
Appearance material: According to customer needs, it can choose (201/304) stainless steel
Thermal insulation cotton: high density aluminum silicate ceramic fiber blanket 120#, density: 120kg/m3; Thickness 30mm. Application range up to 1300°, high temperature fire prevention, sound absorption, noise reduction, to ensure the difference between the surface temperature of the oven and room temperature is lower than 5°
Slate: the cordierite as raw material, ceramic glaze treatment of the surface , high density and high heat storage, non-stick and easy to clean, and it can be customized according to customer needs
Control system: Using famous brands of electronic accessories, such as Omron temperature controller, Schneider relay, Schneider AC contactor, Siemens PLC control system, Siemens touch screen, Siemens inverter. Intelligent control, simple operating system, and equipped with alarm light and alarm sound to prevent misoperation. Anti-backfire safety control mode, automatic detection of gas pressure and the alarm of the fault of turning off the fire. In addition, according to the different baking time requirements of various products, intelligent control can be implemented through the PLC intelligent control system. Drive frequency conversion speed regulation, can achieve ten times speed change and can pre-store more than 10 groups of parameters to achieve automatic operation
Hot air system: use the gas burner to generate heat, release heat through the heat exchange box, and then use the centrifugal fan to drive the whole air to bake the product
OLYMPLA burner: It's a 40+ years famous brand of combustion machine from Japan. It's with auxiliary ignition system,and the proportional motor control makes combustion more fully. Fully automatic operation and all components are easy to check and maintain. Stable performance, reliable operation and long service life
The manual oven discharge device: the products in the oven can be sent out manually when there is a power outage, helping customers to reduce the loss to a minimum. In addition, it's also easy to overhaul.
Performance advantages of slate tunnel oven
The unique heat transfer capacity and heat storage capacity of the SLATE, so that the heat is continuously and stably transferred to the product to be baked and keep the heat stable, greatly shortening the baking time and reducing the loss of water inside the food
The heat distribution is uniform, to ensure that the product is evenly heated, and to produce a finished product with stable shape and quality
The heat is effectively used in the oven to reduce energy consumption
Year-on-year production increase
There is no need for baking trays and return tray conveying line, reducing processes and saving working space
Saving manpower,there is no need to manually flip the pizza during baking
Applications of slate tunnel oven

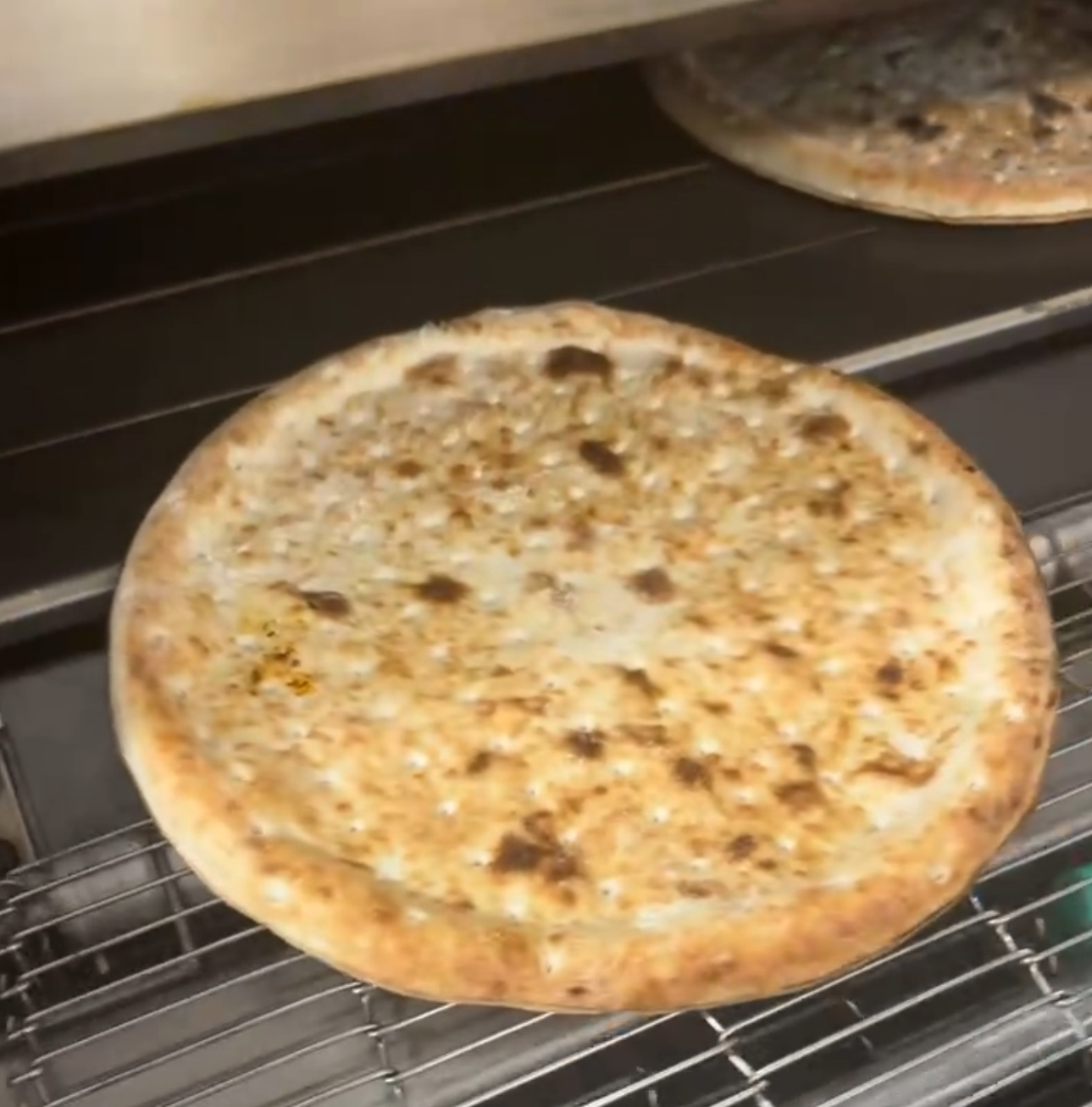

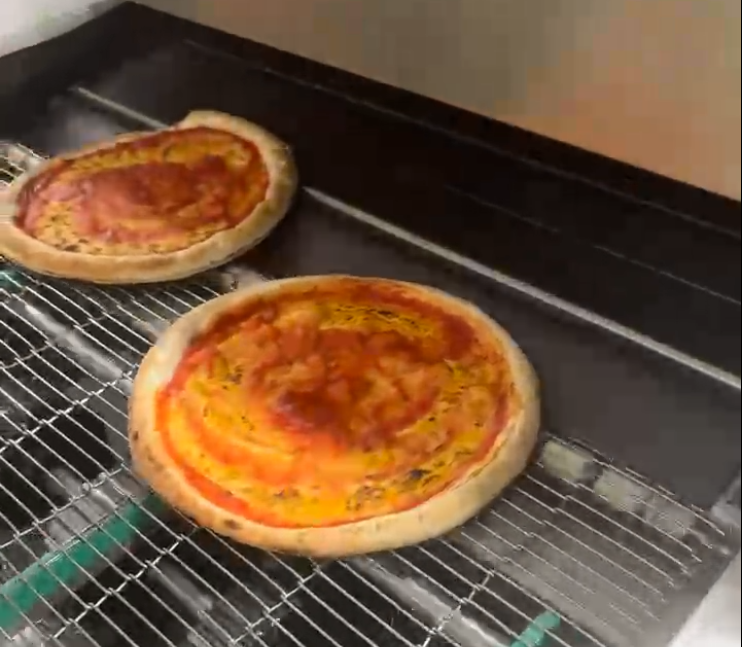

Pizza
Baguette
Nan bread
Pita bread
German alkali knot
Chabata
Chinese burger
Other

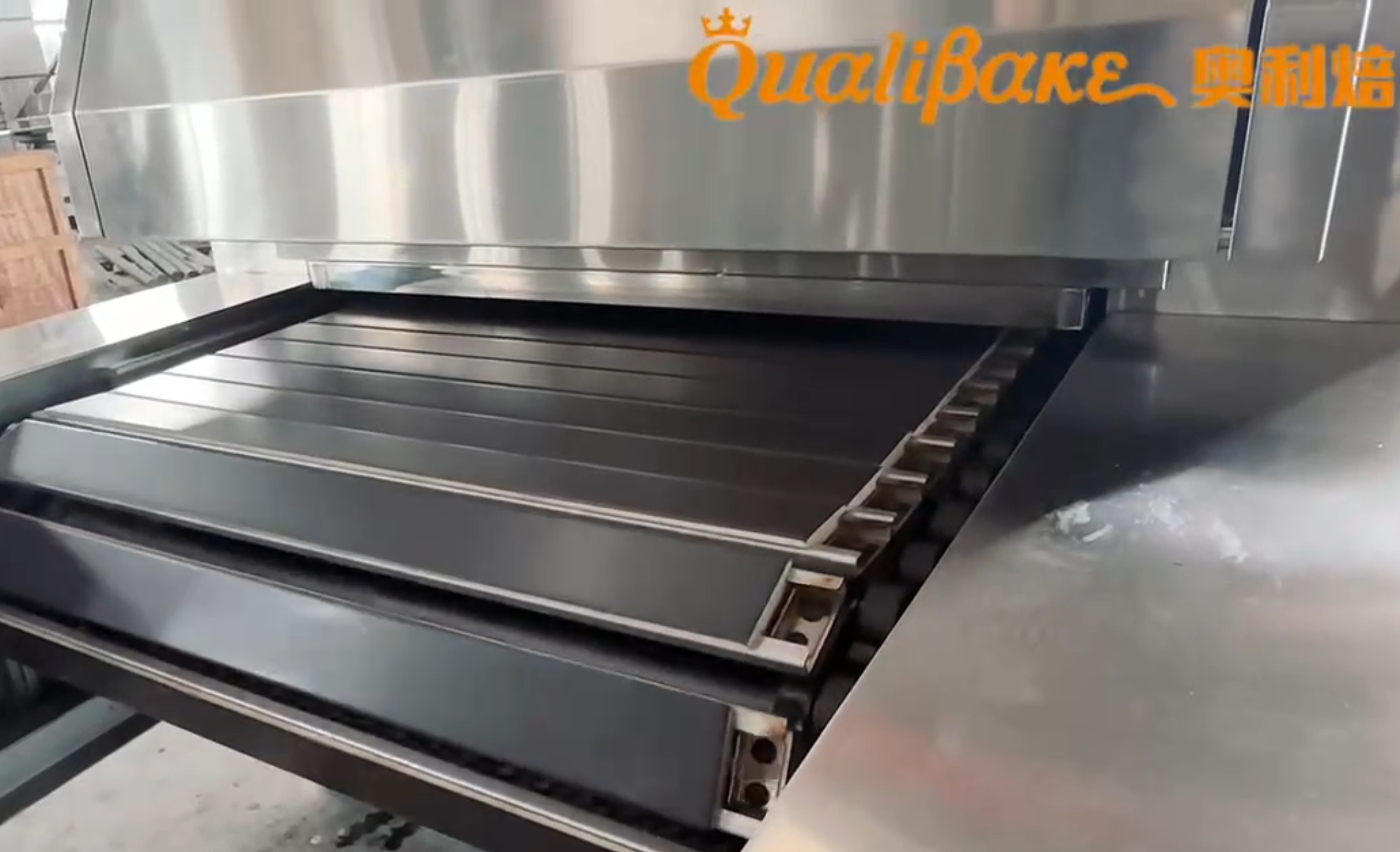

The slate of the tunnel oven
The slate of the QUALIBAKE slate tunnel oven selects premium cordierite raw material, high density ,high heat storage, far-infrared radiation, making food more crispy crust
Material:Cordierite.
Heat resistance:900℃/1650°F
Thickness: customized
Certification:FDA/LFGB /Japan LAW370.
The slate can be customized in different colors, thicknesses, sizes and shapes according to the customers’ products, preferences and needs.
