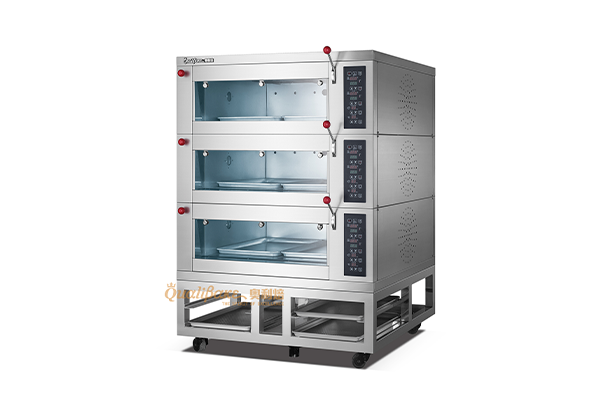

European-style furnace

Share to:
Availability:
Quantity:

1) Holland furnace and layer Pisa furnace, built-in steam, steam explosive, 4 seconds can evaporate more than 800 grams of water, suitable for baking of all kinds of cakes, etc., the clouds are in the Middle Eastern bread Ideal baking equipment with pizza.

2) Deluxe appearance, use all stainless steel brushed ultra-thick plate housing, combined with the overall microcomputer chip digital control system, high strength high temperature full glass furnace door.

3) Internal practical, ie baking effect, and even the same layer baking; almost consistent with the three layers of color at the same time.

4) Electrical accessories use domestic well-known brands to combine international brands to achieve the best use effect, extend its service life and stability.

5) The control panel adopts domestic advanced microcomputer board, easy to operate, complete function, accurate control.

6) The thermal intensity of the electric heating tube is customized with a particular material that is more stable with the coldness strength relative to 304, and the properties are stable and durable.

7) Structure: Use a few layers of coil combination, such as between the layers and the layers, the layer and the outer casing are designed to eliminate the direct introduction of the furnace in the furnace; the electric heat pipe is installed, reducing the volume of the furnace body. Save space; steam built-in, special design, large steam volume, space, and good overall effect.


model

product name

Baking

Size size (mm)

Rated voltage (V)

Rated frequency (Hz)

Rated power (kW)

QE-A2DI

First floor

400MMX600MM

1190x1240x920

220 / 380VAC

50/60

4.16

QE-B4DI

Two floors four discs

1190x1240x1285

8.3

QE-C6Di

Three layers of six plates

1190x1240x1650

12.5

QE-C9Di

Three layers of nine plates

1610x1240x1650

21
